product feature
1. Quick ,mistake proof set-up
2. No hand shredding
3. Accepts standard redemption tickets,:1” 1.5” 2”
4. Speed :greater than 1120 tickets/min(1inch ticket)
5. Resettable electronic counter
6. Anti-hacking function
7. Warranty :1 year
8. Printer is optional
Advantages:
1. 6-edged cylindrical blade,2 blades combination design the
lifetime is around 4-5 years
2. compatible with 99% card systems
.eg:sacoa,cointech,embed,semnox,intercard,intergrado,etc...
3. original japanese motor, low noise,not hot with 24h continuous
working
4. special anti-pulling ticket function ,ticket quality will
decrease when pulling
5. printing function is for option ,convenient and fast for
printing
6. special anti-pulling ticket function, ticket quantity will
decrease when pulling
7. printing function is for option, convenient and fast for
printing
8. imported high quality sensors, more than 2 years lifetime.
The characteristic parameters:
Voltage range:110V-220V.
Large display:Mid-sized 4 digit LED,movable display.
The long tool life:Accurate calculation without error.
Counting speed:about 1120pcs/ min.
Motor: 5-years-lifetime , AC: 220V
VolumeL:38*34*30
Weight: 8.5KG
Functional specification:
1.After put lottery tickets into the mouth, the motor will
automatic starting, until lottery finished cutting, motor will
automatically stop.
2.When customers finish the lottery inventory, press the "reset"
key, automatic printing small bills and counter will be zero.
3.The machine of the motor is high torque, special high speed , so
if there are more than one (abnormal) tickets coming, it still can
maintain normal cut.
4.The machine can be connnected with card reader to keep the data.
After press "reset" key, data to be zero.

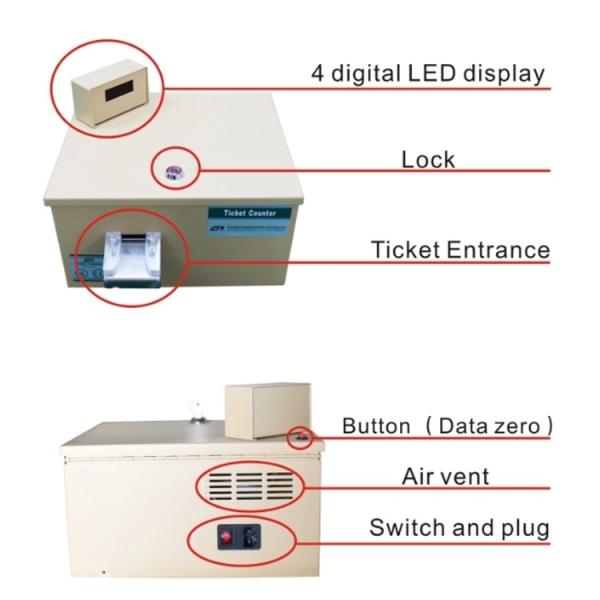

Advantage of ticket eater:
1. Imported Power supply
Imported Mean Well power supply,more safer and stable.
2. Main board
All-chip production, regulator control, software stability, more
practical for user.
3. Imported Original Japanese Motor
Original imported from Japan. 5 years warranty. It can be used
continuously and won’t hot.it is safe for user.
4.Tungsten steel blade
The blade is made of tungsten steel-Industrial grade
steel.high-hardness, wearable,good toughness,heat resistance,
corrosion resistance,etc.
5.Imported original counting sensor
Inducing sensor:to start the motor when induce the ticket in
Counting sensor:count the quantity of ticket in. Counting accuracy,
high precision, fast response, non-contact.Durable and strong
anti-interference.The unique appearance increases the width of the
collected beam to achieve better results.
special attention:
1.Row tickets mouth please keep smooth, avoid let cancelled tickets
be block up, so as to avoid the motor fuse even gear wear
2.Please avoid cutting tape or sticky stickers and staples etc, in
order to avoid ticket affect the life of cutter.
Packing:
Safe package:Plastic + Shockproof nylon+ carton
Package Contents
1 x A set of gears
1 x Brush
1 x Bulb
